BLICKS PROJECT (Anchor 100%)
New South Wales – gold, copper, molybdenum & tungsten
Following a significant amount of exploration, including shallow drilling at the Blicks project – Tyringham prospect, a large intrusion-related gold system ( IRGS ), has been discovered and limited drilling has intersected extremely long zones of low grade gold mineralisation near surface. The style of mineralisation intersected is interpreted as leakage from a postulated deeper, higher grade, primary IRGS source. IRGS gold deposits often contain more than 1 Million ounces of gold and up to 10 Million ounces and have in recent years become major global gold producers.
Two other large, granite-related mineral systems, Tuting and Navin prospects, occur within a mineralised transverse corridor extending northeast from Tyringham. These contain copper, molybdenum, tungsten and gold.
At Blicks the large Tyringham IRGS and Tuting granite-related prospects are drill-ready and have potential to host major deposits.
The Blicks project is located in the Southern New England Orogen in northeast NSW, 90 km northeast of the major regional center of Armidale. The project’s main prospects are Tyringham (intrusion-related gold system), Navin (granite-related polymetallic), Tuting (granite-related molybdenum-tungsten) and Liberty (granite-related copper-molybdenum). This is a significant polymetallic mineral district with large, multi-element soil geochemical anomalies associated with a transverse corridor hosting a number of granitoid intrusions of different ages over an area 12 km x 2 km.
The Tyringham Corridor has been discovered by Anchor and is a transverse lineament where a number of intrusions have been emplaced over a period of 65 million years. The intrusions are often anomalous in a variety of metals. Intrusion-related gold mineralisation is present at Tyringham, granite-related arsenic-copper-zinc-silver mineralisation is present at Navin, molybdenum-tungsten mineralisation is present at Tuting, and copper-molybdenum mineralisation is found at Liberty and within the Billys Creek Tonalite extending either side of Liberty. Magnetic imagery suggests the Tyringham Corridor may extend a further 7 km to the northeast where another intrusion is interpreted from magnetics and where granitoid float has been found on surface.
Tyringham IRGS as a prime target for further work. The type of alteration (greisen) and related metal associations (Au-Bi-Te ±Cu-Ag-W and As-Ag-Fe-Pb-Zn-Cd ±In-Sn) are interpreted to be consistent with an intrusion-related magmatic-hydrothermal system. In these systems around the world, the age of the host rocks and mineralisation is contemporaneous. A major advancement in Anchor’s understanding of the metallogenic chronology in the Blicks district was provided by age dating results yielding a ~220 Ma age (late Triassic) for sericite alteration directly associated with gold mineralisation, being much younger than the host rocks. This conforms with the IRGS model.
Gold mineralisation intersected by shallow drilling to date is interpreted as “leakage” mineralisation within passive host rocks of ~350 Ma and 240 Ma age respectively. The target for future exploration is a concealed, proximal source intrusion, and associated fluid pathway structures, of ~220 Ma age which conceptually may host higher grade gold mineralisation.
Known granitic intrusions with younger ages (i.e. late Triassic) in the Southern New England Orogen are restricted to the eastern zone, relatively close to the NSW coast. These have an age range of ~212-230 Ma with this age overlapping that of Triassic volcanic rocks at the base of the Clarence-Moreton Basin, implying that there was a major thermal event in the crust of the region at this time. It could be implied that the evidence for imposed thermal metamorphism (and hydrothermal alteration) on the host rocks at Tyringham is consistent with the occurrence of nearby, possibly underlying/subjacent, granitoid intrusions of younger (e.g. ~220 Ma) age. These concealed plutons may well be the source of the gold at Tyringham and may host higher grade gold mineralisation in the causative intrusions.
The Tyringham conceptual exploration model consists of a small concealed intrusive cupola hosting a sheeted quartz vein array developed in the roof of the cupola and overlying carapace and below leakage mineralisation developed as a random quartz stockwork higher in the system and hosted by older rocks. Drilling to test the Tyringham conceptual model is subject to board approval.
The Navin, Tuting and Liberty mineral systems identified by Anchor will be further explored in what is emerging as a potentially very significant region of complex and varied metal endowment.

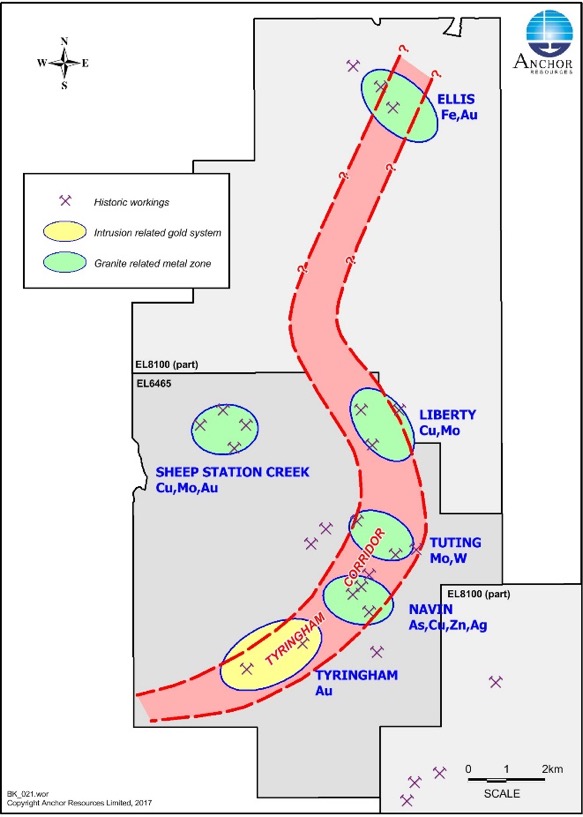

Tyringham Corridor and prospects

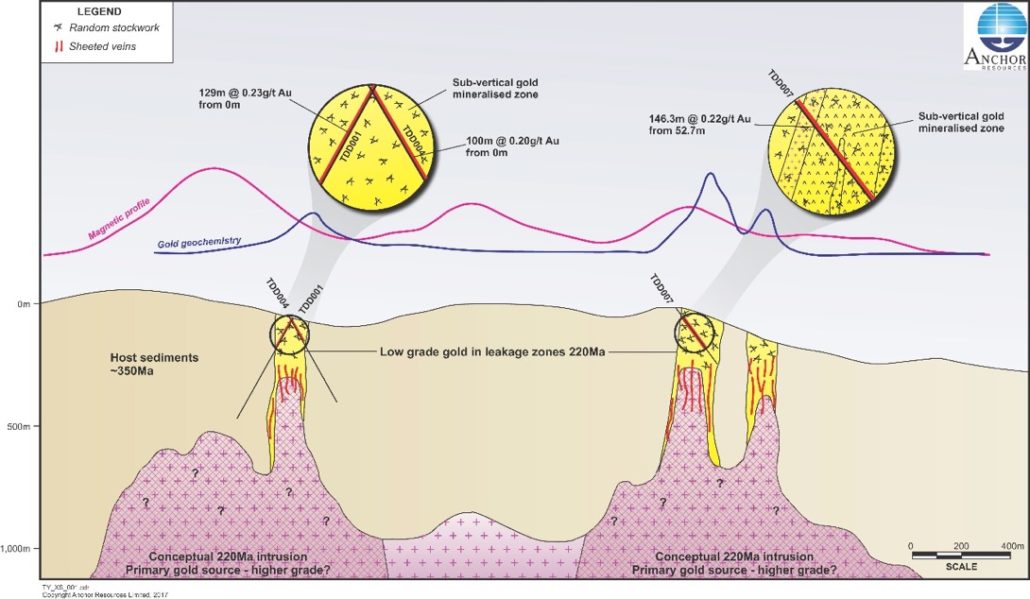

Tyringham IRGS schematic diagram showing long intervals of low grade gold mineralisation intersected by drill holes near surface

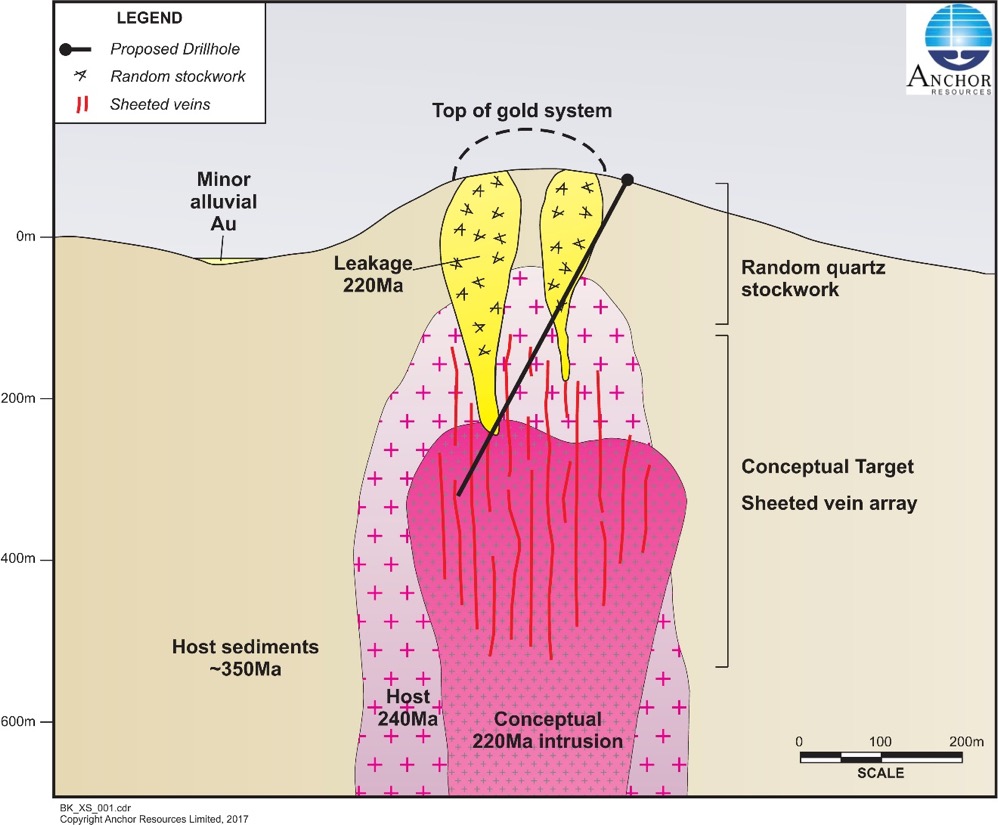

Tyringham IRGS conceptual exploration model
